Torispherical Head

  • Materials: Carbon Steel, Stainless Steel, Alloy Steel, Clad Steel, Dual-phase Steel, Eec.
  • Fabrication Method: cold dishing and flanging or hot pressing.
  • Dimensions: up to 26,000 mm diameter and 200mm thickness.
  • Edge preparation: according to your requirement.
  • Approval: ASME.
  • Inspections: by LR, TÜV, BV, SGS, or other inspection companies.
  • Certifications of ASME U, ASME U2, NB, PED(CE),ISO9001, ISO45001, ISO14001.

Description

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The flat dished head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

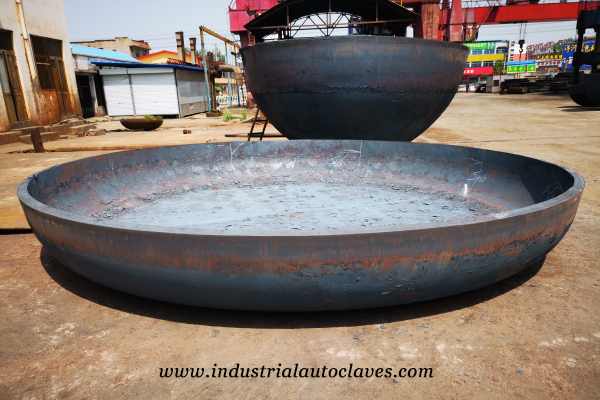

flat-tank-end

flat-tank-end

 Torispherical Head Specifications

Torispherical Head Specifications of TAIAN STRENGTH
MaterialsCarbon Steel, Stainless Steel, Alloy Steel, Clad Steel, Dual-phase Steel, Etc.
Forming WayColding forming or Heat Forming
Diameter500mm~260,000mm
Thickness5mm~300mm
Molding MethodIntergral forming or Split Welding
Edge preparationAccording to Requirement
Manufacture StandardASME or  China Standard
NDTVisual Test, PT, RT, UT, MT
Third Party TestingLR, TÜV, BV, SGS,etc.
※ Other customization is acceptable

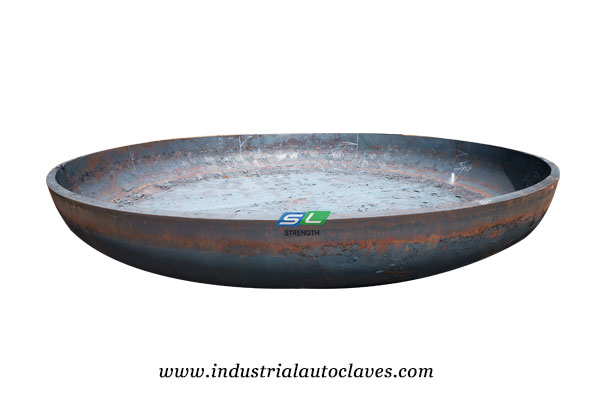

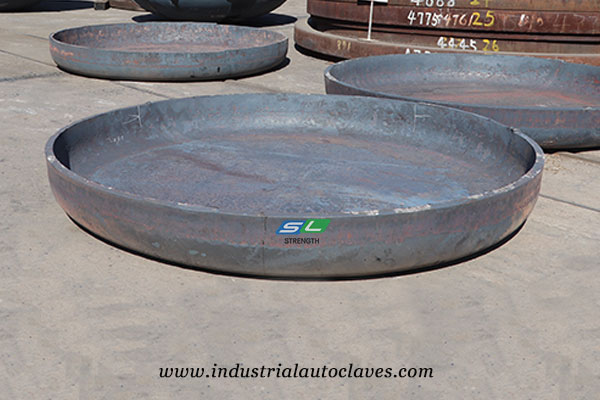

torispherical heads of sl equipments

torispherical heads of sl equipments

Applications of Torispherical Head

STRENGTH Equipments can produce up to 8,000 mm diameter asme torispherical dish end depending upon thickness of material and wall thickness up to 30 mm depending upon material and diameter. custom forms and dimensions are also available.

Compared with elliptical head,  due to its easier manufacturing processes, the torispherical head is often used in addition to the pressure is larger diameter pressure vessel.

About STRENGTH Equipments

Taian STRENGTH Equipments Co., Ltd is the professional pressure vessel designer, manufacturer and exporter dedicated in supplying finest quality industrial autoclave, storage tank and dish head products and solutions to worldwide customer over 20 years. We have over 80 talented research and development experts, 2 million square meters manufacturing factory and more than 50 sets large-scale manufacturing machines.  Our annual industrial autoclave and storage tank output can reach over 300 sets, dished head output can reach over 3000 sets.

STRENGTH Equipments is not only manufacturing high quality industrial autoclaves, storage tanks and dished heads but also providing custom product design, fabrication and after-sale service.  ODM, OEM are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.
